Ubuntu 安装指导

当前的仓库要求的还是安装opencv4.6

gocv想要用就必须使用make进行编译。

Step1 克隆仓库

1
git clone https://github.com/hybridgroup/gocv.git

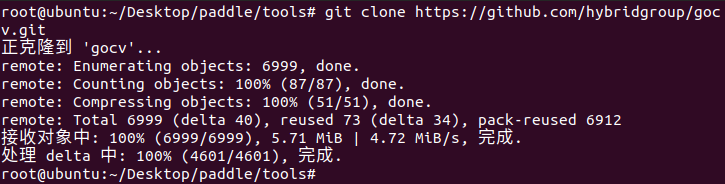

image-20220613161028219

Step2 make install

Once you have cloned the repo, the following commands should do everything to download and install OpenCV 4.6.0 on Linux:

1
2
cd gocv
make install

If you need static opencv libraries

1
make install BUILD_SHARED_LIBS=OFF

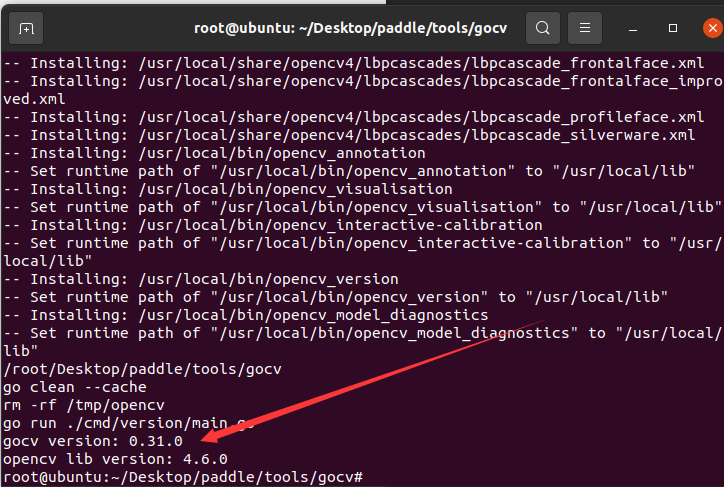

image-20220613162328973

看到gocv和opencvlib的版本信息就编译完成了

Step3 测试Gocv读取文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package main

import (
"gocv.io/x/gocv"
)

func main() {
image := gocv.IMRead("./test.png", gocv.IMReadColor)
//构建窗口
window := gocv.NewWindow("img")
window.ResizeWindow(500, 300)

//在窗口展示图片
window.IMShow(image)
window.WaitKey(0)
window.Close()
}

GoCV读取图片三通道[]float32

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
package main

import (
"gocv.io/x/gocv"
"log"
"math"
)

type Image []float32

func main() {
imageFilePath := "../../data/Lena.png"
originalMat := gocv.IMRead(imageFilePath, gocv.IMReadGrayScale)
if originalMat.Empty() {
log.Panic("Can not read image: " + imageFilePath)
return
}

originalImage := originalMat.ToBytes()
targetImage := make(Image, len(originalImage))
for i := 0; i < len(targetImage); i++ {
targetImage[i] = float32(originalImage[i]) / 255
}

targetImage.zeroAverageMatrix()
log.Println(targetImage)

targetImage.dispersionMatrix()
log.Println(targetImage)
}

func (image *Image) zeroAverageMatrix() {
average := image.average()

for i := 0; i < len(*image); i++ {
(*image)[i] = (*image)[i] - average
}
}

func (image *Image) dispersionMatrix() {
average := image.average()
tempImage := image.clone()
length := len(tempImage)

for i := 0; i < length; i++ {
tempImage[i] = float32(math.Pow(float64(tempImage[i]-average), 2))
}

sum := tempImage.sum()

standardDeviation := sum / float32(length-1)

for i := 0; i < length; i++ {
(*image)[i] = (*image)[i] / standardDeviation
}
}

func (image Image) sum() float32 {
length := len(image)
var sum float32 = 0
for i := 0; i < length; i++ {
sum = sum + image[i]
}

return sum
}

func (image Image) average() float32 {
length := len(image)
sum := image.sum()

return sum / float32(length)
}

func (image Image) clone() Image {
length := len(image)
cloneImage := make([]float32, length)
for i := 0; i < length; i++ {
cloneImage[i] = image[i]
}

return cloneImage
}

Reference

hybridgroup/gocv: Go package for computer vision using OpenCV 4 and beyond. (github.com)

https://zhuanlan.zhihu.com/p/428249664
